Brand: SHANGFANG

Model: SF-205N1



Features

It is an intelligent controller

and applicable to the compressor of one HP.

Temperature Display / Temperature Control

Automatic defrost by electric heater or hot gas/Light Control

Electric heater defog

High,Low temperature alarm

Self Testing /Parameter Locking

Technical Data
Range of temperature display:-45~150℃

Range of set temperature:-45~50℃

Accuracy:±1℃

Temperature sensor: NTC, two sensors,2m(L)
Compressor:  N.O.  30A/250VAC  (applicable to one HP  Compressor, if more it needs to connect an  AC contactor)

Defrost:      N.O. 10A/250VAC

Evap. Fan:    N.O.  5A/250VAC

Light:        N.O.  5A/250VAC

Defog:       N.O. 10A/250VAC

Dimensions:142(Length)×40(Width)×40(Depth)mm

Mounting hole dimensions:138(Length)×32.5(Width)mm

Parameters



Paramete

Function

Set range

Default

E1

Lower setpoint limit

-45℃~Set temp.

-30℃

E2

Higher setpoint limit

Set temp.~50℃

30℃

E3

Temp.hysteresis

1~10℃

4℃

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on room temp.

-10~10℃

0

E6

Offset on evap.temp.

-10~10℃

0

F0

Defrost function

0=Electric heater

1=Hot gas

0

F1

Max.Defrost duration

1~60Min

20Min

F2

Defrost interval time

0~24Hr

6Hr

F3

Defrost termination temp.

0~50~0℃

8℃

F4

Display during defrost

0=Normal display
1=Last value before defrost

0

F5

Dripping time after defrost

0~10Min

2Min

H1

Fan start delay time

0~10Min

1Min

H2

Fan operating function

0=Parallel with comp

1=Continuous running except defrosting

1

H3

Fan control during defrosting.

0=always OFF 1=always ON

0

C2

High temperature alarm

C3~130℃

40℃

C3

Low temperature alarm

-45℃~C2

-40℃

C4

Alarm delay time

1~90~1Min

60Min

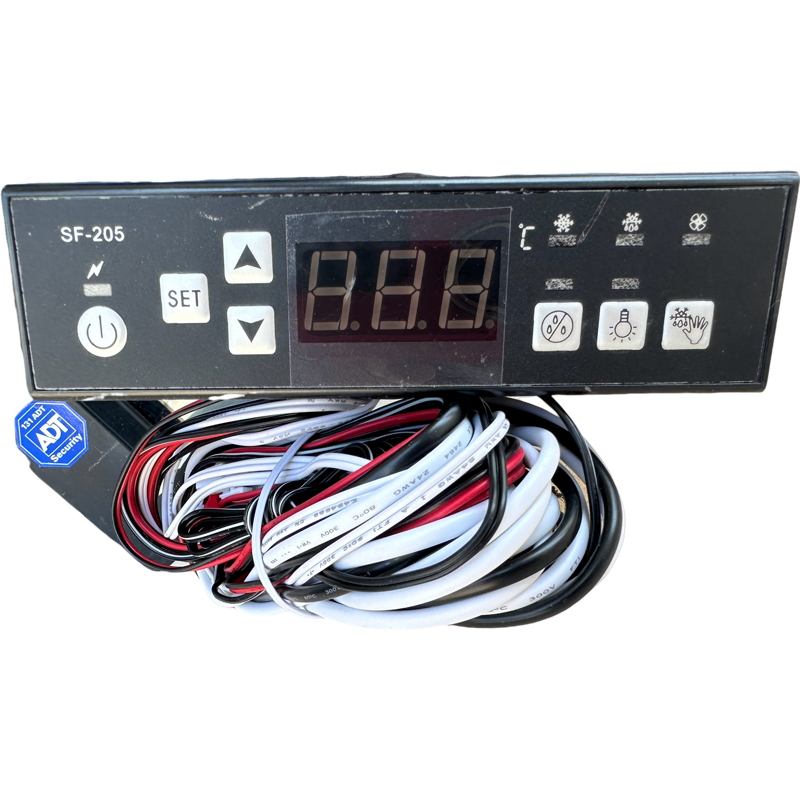

SF-205N1 TEMPERATURE CONTROLLER Description

SKU: R009072
$185.00 Regular Price
$157.25Sale Price
