Brand: SHANGFANG

Model: SF-104A



Features
Temperature Control
Evap.Fan Control
Manual,automatic defrost by electric heater
Value Storing
Self Testing
Parameter Locking

Technical Data
Range of temperature displayed : —45~66℃ (-45~150℉)
Range of set temperature: —45~45℃ (-45~120℉)
Accuracy:±1℃ (±2℉)
Compressor: N.O. 16A/250VAC
Defrost: N.O. 10A/250VAC
Evap.Fan: N.O. 8A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameters


Parameter
Function
Set range
Default
E1
Lower setpoint limit
-45℃/-45℉~Set temp.
-35℃/-31℉
E2
Higher setpoint limit
Set temp.~45℃/120℉
20℃/68℉
E3
Temp.Hysteresis
1~10℃/1~18℉
4℃/7℉
E4
Comp.start delay time
0~10Min
2Min
E5
Offset on room temp.
-20~20℃/-36~36℉
0
E6
Offset on evap.Temp.
-20~20℃/-36~36℉
0
C1
Temperature unit
℃=Celsius   ℉=Fahrenheit
F1
Max.Defrost duration
1~60Min
20Min
F2
Defrost interval time
0~24Hr
6Hr
F3
Defrost termination temp.
0~20℃/32~68℉
8℃/46℉
F4
Display during defrost
0=Normal display
1=Last value before defrost
0
F5
Fan operating function
0=Parallel with comp.
1=Continuous running except defrost
0

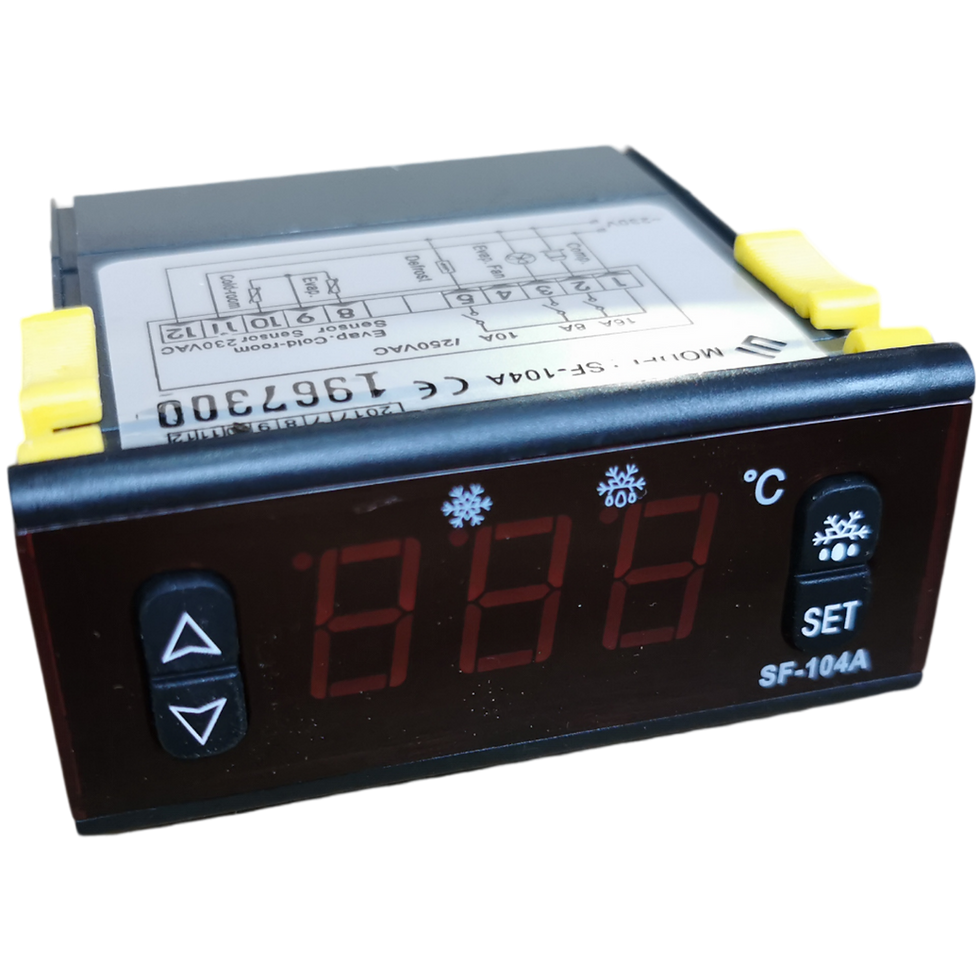

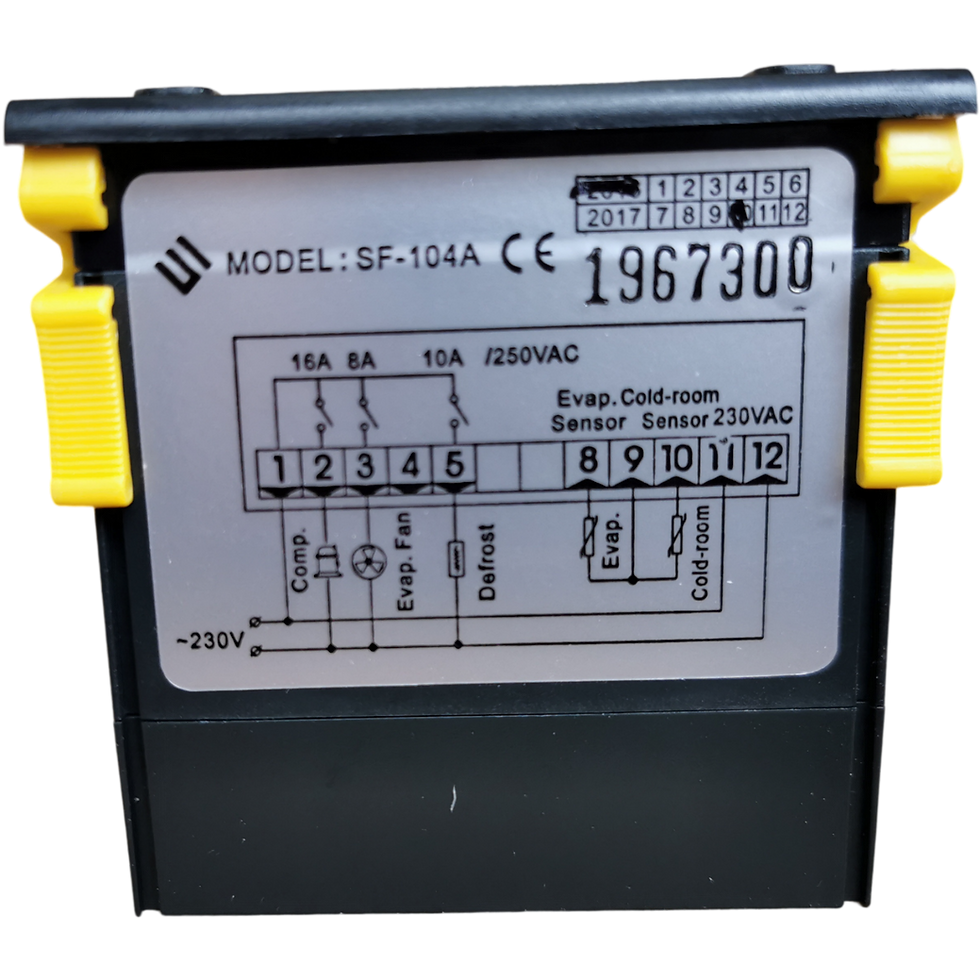

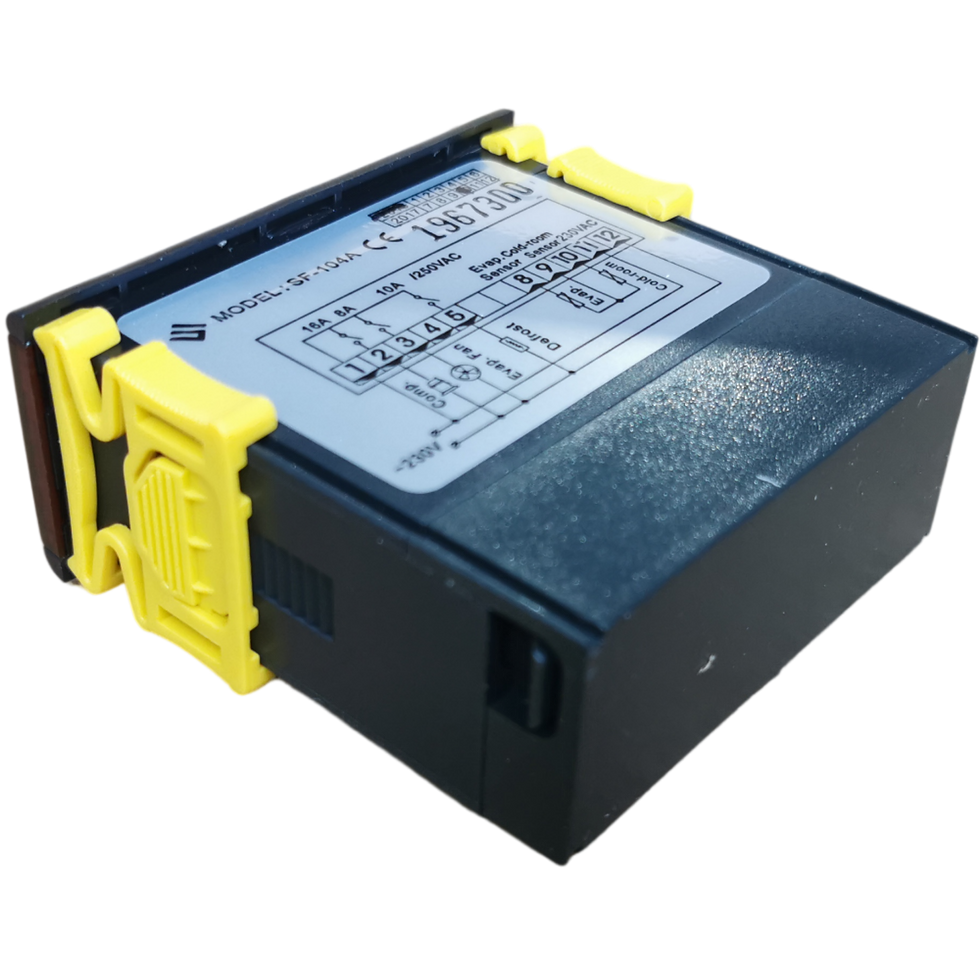

SF-104A TEMPERATURE CONTROLLER

SKU: R009048
$120.00Price
