Brand: SHANGFANG

Model: SF-102

Features
Temperature control
Light control
manual/automatic defrost by turning off
Time/temp. seting to end defrost
Re-start delay
Celsius/Fahrenheit degrees
Relay output :1HP(compressor)

Technical Data
Range of temperature display:—45~45℃  (-40~120℉)
Range of set temperature:—45~45℃  (-40~120℉)
Accuracy:±1℃ (±2℉)
Compressor: N.O. 20A/250VAC(one HP)
Light: N.O. 5A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameters

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-45℃/-40℉~Set temp.

-35℃/-31℉

E2

Higher setpoint limit

Set temp.~45℃/120℉

20℃/68℉

E3

Temp.Hysteresis

1~10℃/1~18℉

4℃/7℉

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on room temp.

-5~5℃/℉

0

E6

Offset on evap.Temp.

-5~5℃/℉

0

F1

Max.Defrost duration

1~60Min

20Min

F2

Defrost interval time

0~24Hr

6Hr

F3

Defrost termination temp.

0~20℃/32~68℉

8℃/46℉

F4

Display during defrost

0=Normal display
1=Last value before defrost

0

C1

Temperature unit

0=℃ 1=℉

0

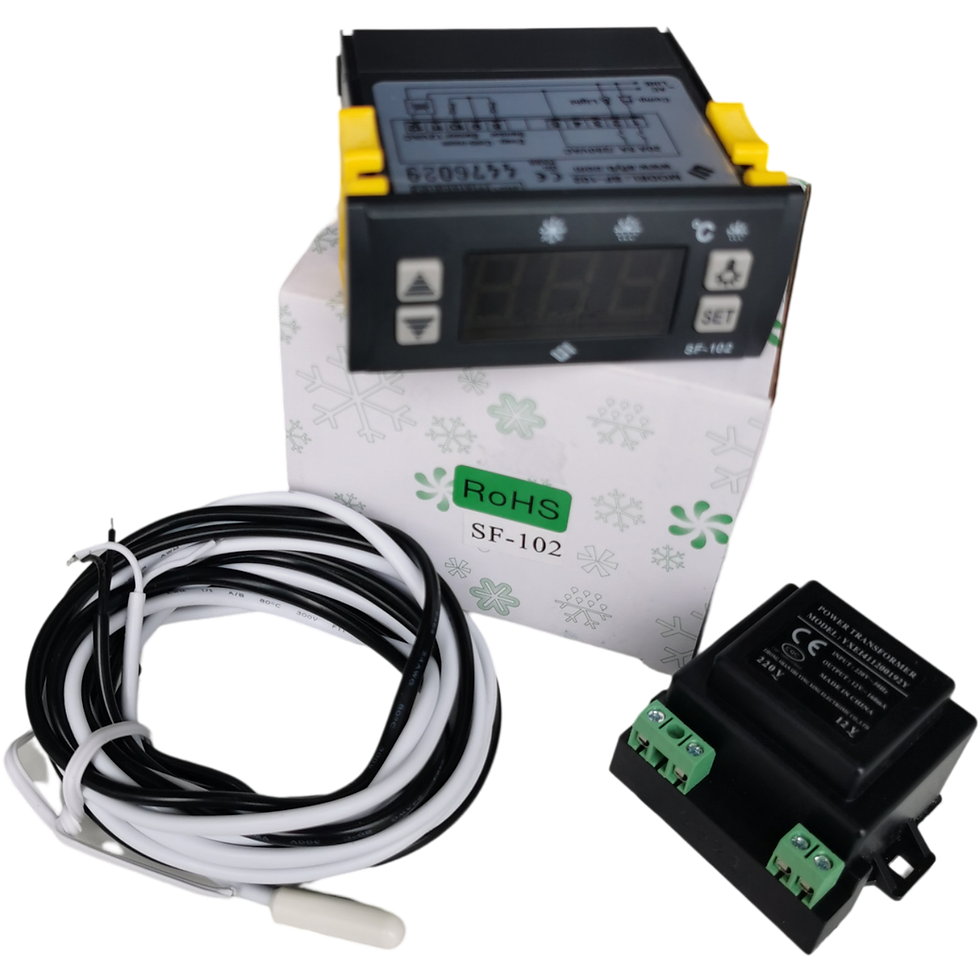

SF-102 TEMPERATURE CONTROLLER

SKU: R009076
$130.00Price
