Condensate Pump Mini Box(
MODEL: MIBP15
BRAND: CHINAFORE

Install the water removal device, but the space is very small, what should I do?
The slim box can be installed where other drain pumps cannot be installed.

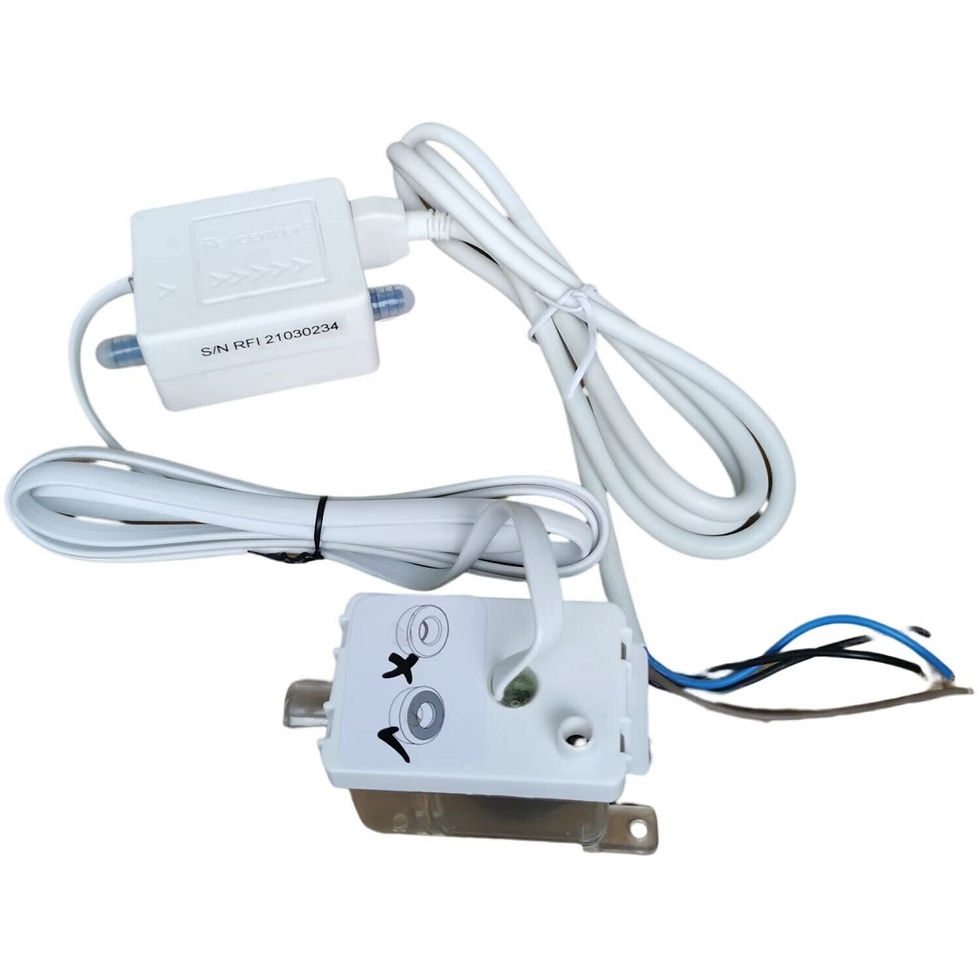

 Condensate Pump Mini Box(White) For Split Air Conditioning
Model: MIBP15

The mini box is a very compact pump that we have introduced, a variety of installation methods, simple and practical, ultra-quiet working mode gives a very comfortable feeling
 Max. flow : 15L/h @ 0 head
Max. rec.head : 12m
Sound level: <19dB(A) @ 1m

Technical Data
● Power supply: 230V AC 50/60Hz
● Max. flow: 15L/h @ 0 head
● Sound level: >19dB(A) @1 m
● Max. recommended head: 12m
● Max. suction lift: 12m
● Max. unit output: 16kw/54600 Btu/h
● Safety switch: 3A Normally closed
● Max. water temperature:40℃
● Tank capacity: 40ml
● Discharge tube: 6mmID
● Class: Ⅱ appliance
● Rated: Non Continuous
● IP Protection: IPX1
● Thermal protection: ✔
● Fully potted: ✔
● L x W x H: 92mm x 52mm x 32mm

Accessories
a. lid & sensor cable
b. float
c. filter
d. reservoir
