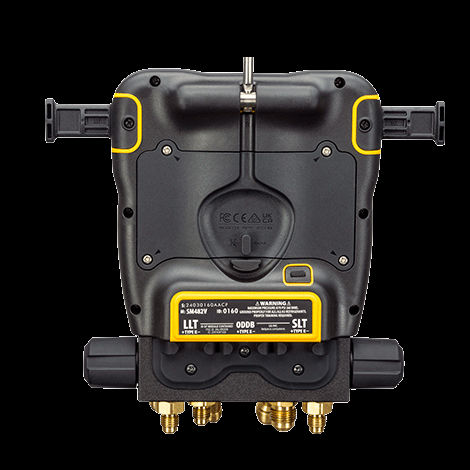

SM482VINT | Fieldpiece 4-Valve Digital Wireless Manifold, Bluetooth

Fieldpiece 4-Valve Digital Wireless Manifold, Bluetooth
Part #: SM482VINT

The SM482V 4-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work.

FEATURES
Supports over 70 refrigerants
A2L Compatible
Features an integrated vacuum gauge
3/8″ Vacuum port and block for fast evacuations
Logs hours of data
Runs a temperature compensated nitrogen pressure test
Displays in 12 languages
Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app
Dust and water resistant (IP55)

MEASURES
Line pressures, pipe temperatures, dry bulb temperature and system vacuum

CALCULATES
Superheat, subcooling, vapor saturation, liquid saturation and delta T
Live target delta T and target evaporator exit temperature with optional Job Link wireless tools
Temperature-compensated pressure differential for nitrogen pressure testing

DATA LOGS
Stores up to 9 jobs internally
Logs up to 168 continuous hours

IS CUSTOMISABLE
Select the measurements to display
Select wireless ON/OFF
Set high and low vacuum alarms

Part of the Job Link® System of Wireless Tools
Add Job Link® System wireless tools to your arsenal and get live readings directly on the SMAN® manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SR47 Refrigerant Scale. Place pipe clamps in the perfect location. View live air measurements and calculations while making adjustments. Monitor and record refrigerant weight for precise recovery and charging documentation.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000’ away on your mobile device. Document your work and provide professional reports, including refrigerant recovery and charge weight, by simply connecting to the Job Link System app.

INCLUDES
SM482V 4-Port Manifold
TC24 Wired Type-K Pipe Clamp Thermocouple - QTY: 2
ATA1 Type-K Bead Thermocouple with Clip - QTY: 1
ANC82 Easy-Open, Padded Case - QTY: 1
AA Alkaline Batteries - QTY: 6
Operator’s Manual - QTY: 1
