Fieldpiece  DR82 - Infrared Refrigerant Leak Detector
Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR

Like all of Fieldpiece's test instruments, the DR82 Infrared Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. You are in control with the manual or automatic zeroing function - it's your choice.
The highest possible sensitivity.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <1.0 gram/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.
The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The ten-hour battery life lets you work all day before recharging. If need you can still use it while charging! The mute and Max mode functions allow you to work the way you want to work.
DR82 Features designed for HVAC-R
10-year sensor life
Doesn’t trigger on soap bubbles and oil
Compact – designed to fit in your hand
Multiple alarms

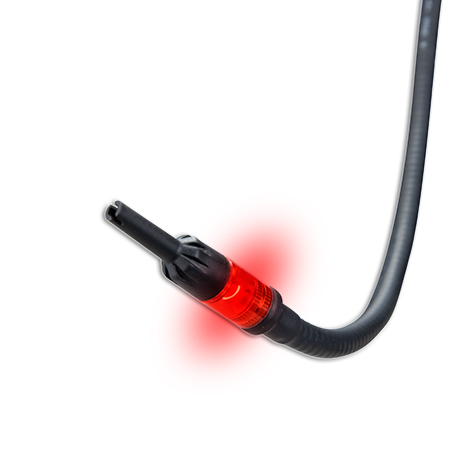

LED lighted tip and loud beep help find leaks in noisy and dark environments
Sensitivity better than 0.03 oz/yr (1g/yr)
Ruggedized and IP54-certified
10-hour battery charge
Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
Non-conductive, sturdy probe that stays where you want it.
Weighs less than a pound
Works on A2L Refrigerants

1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED
Advanced IR Refrigerant Leak Detector - [ DR82 ]
5 x Replacement Filtered Tips - [ RFT6 ]
Wall Charger with USB-C Cable [ RCA3]
Blow-Molded Case [ ABM2]
Operator’s Manual
Specifications
Sensor Type: Infrared (IR)
Sensor Life: 10 years typical
Sensitivity Levels: High, medium, low, turbo (selectable)
Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants: HFC, HCFC, CFC, HFOs, and blends
Response Time: <1 seconds typical
Recovery Time: <5 seconds typical
Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time: 6 hours typical with included charger.
Battery Life: 10 hours typical, backlight off
Auto Power Off: 10 minutes without detection or button press
Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
Weight: 14 oz (400g)
Water Resistance: Designed to IP54
US Patent: www.fieldpiece.com/patents
