Model: STC-1000




STC-1000 Thermostat Temperature Controller main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.


Technical Parameters:

 1. Temperature measuring range: -50℃~99℃;

 2. Resolution: 0.1℃;

 3. Accuracy: ±1℃ (-50℃~70℃);

 4. Sensor error delay: 1 minute

 5. Power supply: 230 VAC±10%, 50/60Hz;

 6. Power consumption: less than 3W;

 7. Sensor: NTC sensor (1PC);

 8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;

 9. Ambient temperature: 0~60℃;

 10. Storage temperature: -30~75℃;

 11. Relative humidity: 20%~85% (No condensate).

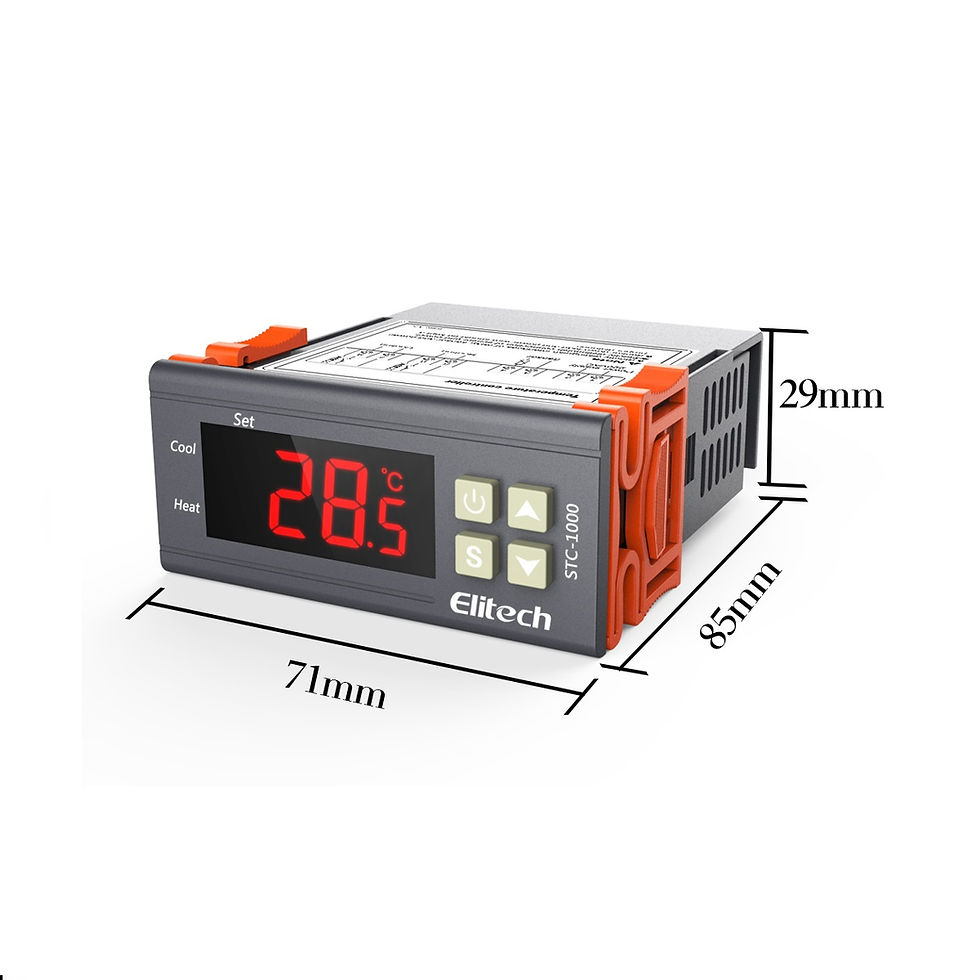

Specification and Size:

 1.Front panel size 75(L)×34.5(W)mm;

 2.Mounting size:71(L)×29(W)mm;

 3.Product size 75(L)×34.5(W)×85(D)mm;

 4.sensor length 2 m included.

 5.Measure range: -50℃+99℃

 6.Mounting size: 71*29 mm

 7.Auto switch between refrigerating and heating

 8. Return difference value

STC-1000 Temperature Controller

SKU: R009024
