Brand: SHANGFANG

Model: ED-106W

Features

It is a mini-sized and integrated intelligent controller

Temperature Control / Manual,automatic defrost

Evap.Fan Control / Defrost by electric heater,hot gas

Time/temp.Setting to end defrost / Value Storing / Self Testing

 Technical Data

Range of temperature displayed:45150  (45~302)

Range of set temperature:4545  (45~113

Accuracy:±1.0(±1.8)

Temperature sensor: NTC, double sensors (for cold-room temp. & defrost control), 2m(L)

Compressor:  N.O. 16A/250VAC

Defrost:      N.O. 10A/250VAC

Evap.Fan:    N.O. 5A/250VAC

Dimension:77(Length)×35(Width)×60(Depth)mm

Mounting hole dimension:71(Length)×29(Width)mm


Parameters





Paramete

Function

Set range

Default

E1

Lower setpoint limit

-45/-45℃~Set temp.

-31/-35

E2

Higher setpoint limit

Set temp.113/45

113/45

E3

Temp.hysteresis

0.236.0/0.120.0

7.2/4.0

E4

Comp.start delay time

010Min

2Min

E5

Offset on room temp.

36.036.0/20.020.0

0

E6

Offset on evap. temp

36.036.0/20.020.0

0

F0

Defrost function

0=Electric heater

1=Hot gas

0

F1

Max. Defrost duration

160Min

20Min

F2

Defrost interval time

           024Hr

6Hr

F3

Defrost termination temp.

3286/030

46/8

F4

Display during defrost

0=Nomal display

1 = Last value before  defrost

0

F5

Fan operating function

0=Parallel with comp.

1 = Continuous running

      except defrost

0

F6

Dripping time

030Min

2

F7

Fan operating function

after defrost end

0=Temperature

1=Time

1

F8

Fan start -up delay

after defrost end

010Min

2

F9

Fan start temperature after

defrosting(evaporator)

2286

3030

41

5

C1

Temperature unit

=Celsius

=Fahrenheit

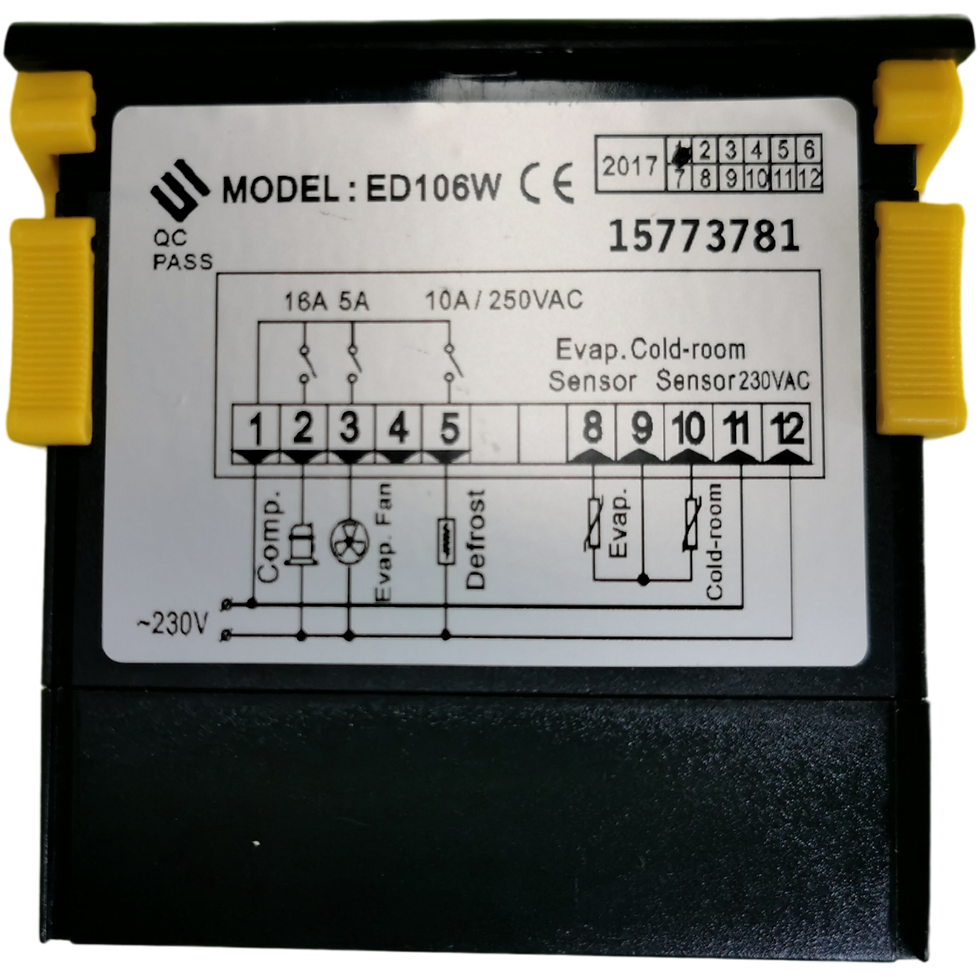

ED-106W TEMPERATURE CONTROLLER

SKU: R026040
$173.00Price
